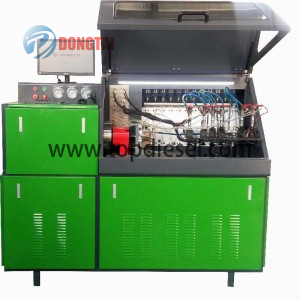

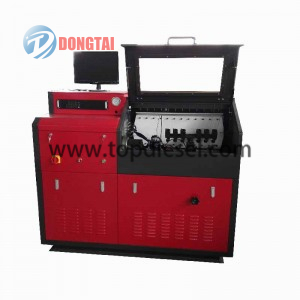

CR3000A Common Rail Injector And Pump Test Bench
CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
It has common rail data inside. It can test 6 pcs injector at same time. It show the delivery oil by measuring glass.
| Common Rail Injector | Common Rail Pump |
| 1. Test brands：BOSCH、SIEMENS、DELPHI、DENSO. | 1.Test brands：BOSCH、SIEMENS、DELPHI、DENSO. |
| 2. Test 6 pieces of injectors at same time. | 2.Test the double plunger HP0 pump of |
| 3. Test the pre-injection of the high-pressure common rail injector. | 3. Test the sealing of common rail pump. |
| 4.Test the max oil quantity of high-pressure common rail injector | 4. Test the internal pressure of common rail pump. |
| 5. Test the cranking oil quantity of high-pressure common rail injector. | 5. Test the proportional electromagnetic valve of
common rail pump. |
| 6. Test the backflow oil quantity of high-pressure common rail injector. | 6. Test the input pressure of common rail pump.
|
| 7. Test the average oil quantity of high-pressure common rail injector. | 7. Test the flux of common rail pump.
|
| 8. Test the high-pressure common rail injector’s injection state and oil quantity measurement. | 8. Measure the rail pressure in real time.
|
>Optional Function:
1) Forced cooling system
2)EUI EUP
3)HEUI
>>>TECHNICAL PARAMETER
Injection testing frequency ：50～3000 rpm Pulse width： 0.1～200 ms
Continuous injection times： 0～1000 Fuel temperature ：40±2℃
Supply oil quantity of common rail injector： 0～200cc/min 0.5%
Rail high pressure ：0～2000 bar Test oil filtered precision ：5μ
Input power ：380V/50hz/3phase or 220V/60hz/3phase
Rotation speed：0~4000RPM Oil tank capacity： 60L
Flywheel inertia’s moment： 0.8KG.M2 Center height： 125MM
Output power ：11kw(15kw 18.5kw )
