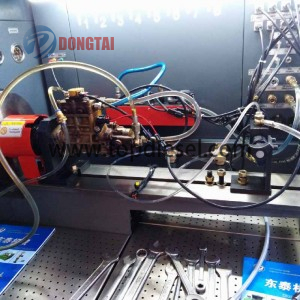

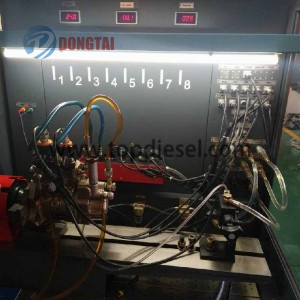

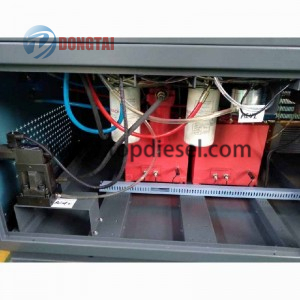

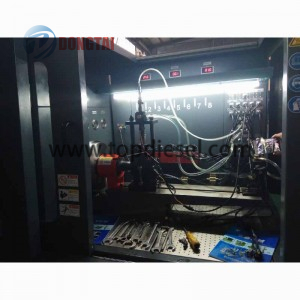

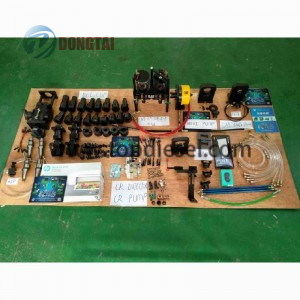

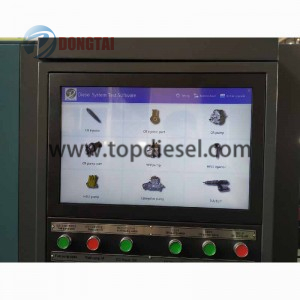

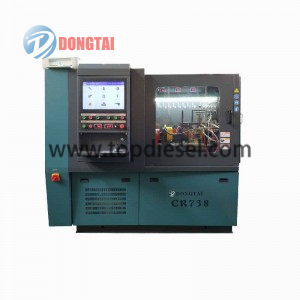

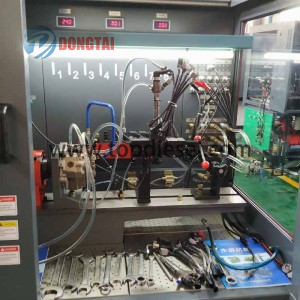

CR738 Common Rail, 320D Pump, HEUI, EUIEUP Test Bench

Short Description:

Ø  Function: 1. CR injector and pump testing2. HEUI Injector testing 3. HEUI pump testing,4. CAT 320D pump testing,5. 2 oil road, (diesel + engine oil)6. QR coding,7.Strong Bending8.High Pressure Soft Oil Pipe9.Square Oil Rail10. EUI/EUP testing, (3pcs Camshaft)11. BIP Response Time function,12. Forced Coling system Main power 380V AC       220V AC(Optional) Phase Three             Single(optional) Frequncy 50Hz/60Hz Current 45A(MAX) Mian motor  11KW Main motor rotation 0-...


Product Detail

Product Tags

Ø  Function:

1. CR injector and pump testing2. HEUI Injector testing

3. HEUI pump testing,4. CAT 320D pump testing,5. 2 oil road, (diesel + engine oil)6. QR coding,7.Strong Bending8.High Pressure Soft Oil Pipe9.Square Oil Rail10. EUI/EUP testing, (3pcs Camshaft)11. BIP Response Time function,12. Forced Coling system

Main power 380V AC       220V AC(Optional
Phase Three             Singleoptional
Frequncy 50Hz/60Hz
Current 45A(MAX)
Mian motor  11KW
Main motor rotation 0-4000 RPM/MIN
Oil motor HP/ Flow  0.19KW   /   13L/MIN
Diesel motor HP /Flow 0.19KW   /   13L/MIN
Control circuit voltage DC12V/24V  350W
ECU internal voltage 0-200V  DCMAX)
Oil tank volume 30L
Diesel Tank volume 52L
Temperature control Heating/Forced cooling
Max rail pressure 180MPa         240MPaOptional
Flowmeterinjection 4—550ml/min
Flowmeterfuel supplying 1—400L/H
Flowmeterfuel flow back 1—400L/H
FlowmeterOil 5—600L/H
