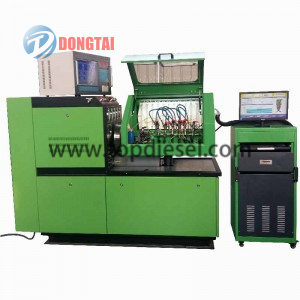

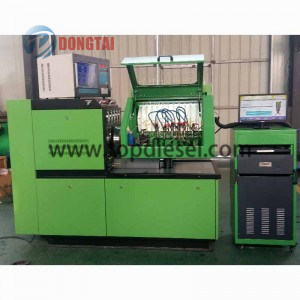

CRS300 Common Rail Test System
The function of the tester for CR high pressure pumps is to provide the desired signal to drive the solenoid in the pump being tested. CRS300 common rail Tester can used for testing following pumps: BOSCH CP1，CP2，CP3，DELPHI, SIEMENS, DENSO HP2 AND HP3.
It also can test 6 common rail injectors in one time.
>>>CRS300 is computer system, it include common rail data inside.
Main technical parameters；
| 1. Injection open pressure:
Control accuracy: stage regulator 2. Injection open frequency: Control range: 0-1000HZ Control accuracy: 1HZ 3. Injection open hold time Control range: 0-65535us Control accuracy: 1us 4. Delivery counts Control range: 0-1000 Control scope: 24V, 80V, 150V, Control accuracy: 1times |
5. Pump model :CP1,CP2,CP3,HP0
6. Fuel pressure control Control range: 0-200Mpa Control accuracy: 1Mpa Control way: PID 7. Power:220V 8. Work temperature: 0-40℃ 9. Relative humidity: 20-90%RH
|
