EUIEUP tester system (with CAMBOX and adaptors)
The EUP/EUI repair tester consists of a mechanical cam box with specified EUP adapter kits and an electronic controller. The cam box will be installed on a standard high pressure pump test bench. The EUP/EUI being tested will be installed in the cam box with the adapter. The electronic controller provides signal to drive the EUP solenoid synchronous with cam shaft rotation. The EUP fuel outlet is connected through high pressure fuel line to an injector. The EUP fuel injection quantities can be checked at given speeds and loads to judg e its quality.
EUI/EUP TESTER LIST
| P/N | NAME | PHOTO | DESCRIPTION |

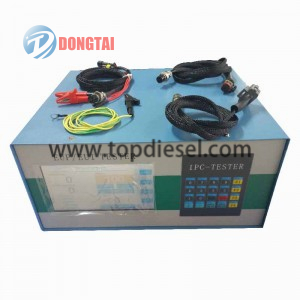

| N0100 | EUI/EUP TETER SIMULATOR | ||
| No,101 | Piezo Module | for VW PIEZO EUI | |
| No,102 | Dual-SolenoidModule | for Delphi E3dual-solenoid EUI | |
| No,103 | Assembly | ||

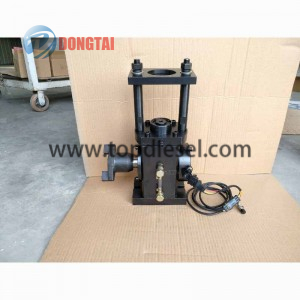

| No,104 | EUI Mounting Base and Pillar
Assembly |
||
| No,105 | EUP Adaptor for DT021,DT025 AND DT026 |

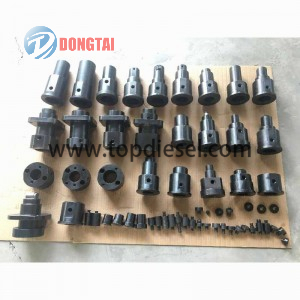

| P/N | EUI/EUP MODEL | EUI/EUP PHOTO | ADAPTOR | PUSH ROD |
| DT001L(901781) | Land Rover EUI | |||
| DT002L(902361) | CAT MUI CAT3500 | |||
| DT003L(900786) | Cummins EUI N14 Celect | |||
| DT004L(901761) | Scania EUI DC/DSC | |||
| DT005L(901751) | Iveco/Volvo EUI Iveco Cursor 10/13 Iveco Stralis Volvo D12A, D12C, FH12 Bosch EUI for Volvo 420-460 | |||
| DT006L(901801) | DDC EUI DDC 92 | |||
| DT007L(900766) | Cummins EUI L10 M11 Celect LSM | |||
| DT008L(900758) | Detroit EUI Series 60 N3 | |||
| DT009L(901721) | Caterpillar EUI 3406E, C15 | |||
| DT010L(901701) | Caterpillar EUI 3196/3176A/3176B | |||
| DT011L(902351) | CAT EUI CAT3500 | |||
| DT012L(901776) | VW Piezo EUI VW Solenoid EUI | |||
| DT013L(901771) | Audi/VW EUI Seat Skoda | |||
| DT014L(901811) | EUI CAT 3116 | |||
| DT015L(901791) | John Deer EUI | |||
| DT016L(901731) | Delphi E1 or Delphi E3 |
|
||
| DT017L(900753) | Detroit EUI Series 60/50 N2 | |||
| DT018L(901711) | Caterpillar EUI 3176C/C10/C12 | |||
| DT019L(901741) | Iveco EUI Cursor 8 | |||
| DT020L(900931) | EUP Mercedes Benz OM900/MBE900 Mercedes Axor Atego, Econic | |||
| DT021L(900901) | EUP Deutz 1013 | |||
| DT022L(900921) | EUP DDC/MTU S2000 Mercedes Benz Actros MBE4000 | |||
| DT023L(900951) | EUP Delphi | |||
| DT024L(900941) | EUP Mack Renault DAF Deutz 2015 | |||
| DT025L | DELPHI, HENGYAN EUP | |||
| DT026L | WIT EUP |
